Apache 2800

Boombox reference

Revision 01

A working wiring reference and core-parts manifest for a DIY boombox build in a Harbor Freight Apache 2800 case.

Mobile view

This wiring reference works best in a desktop browser. You’re seeing a simplified diagram and parts list without circuit filters or part highlighting.

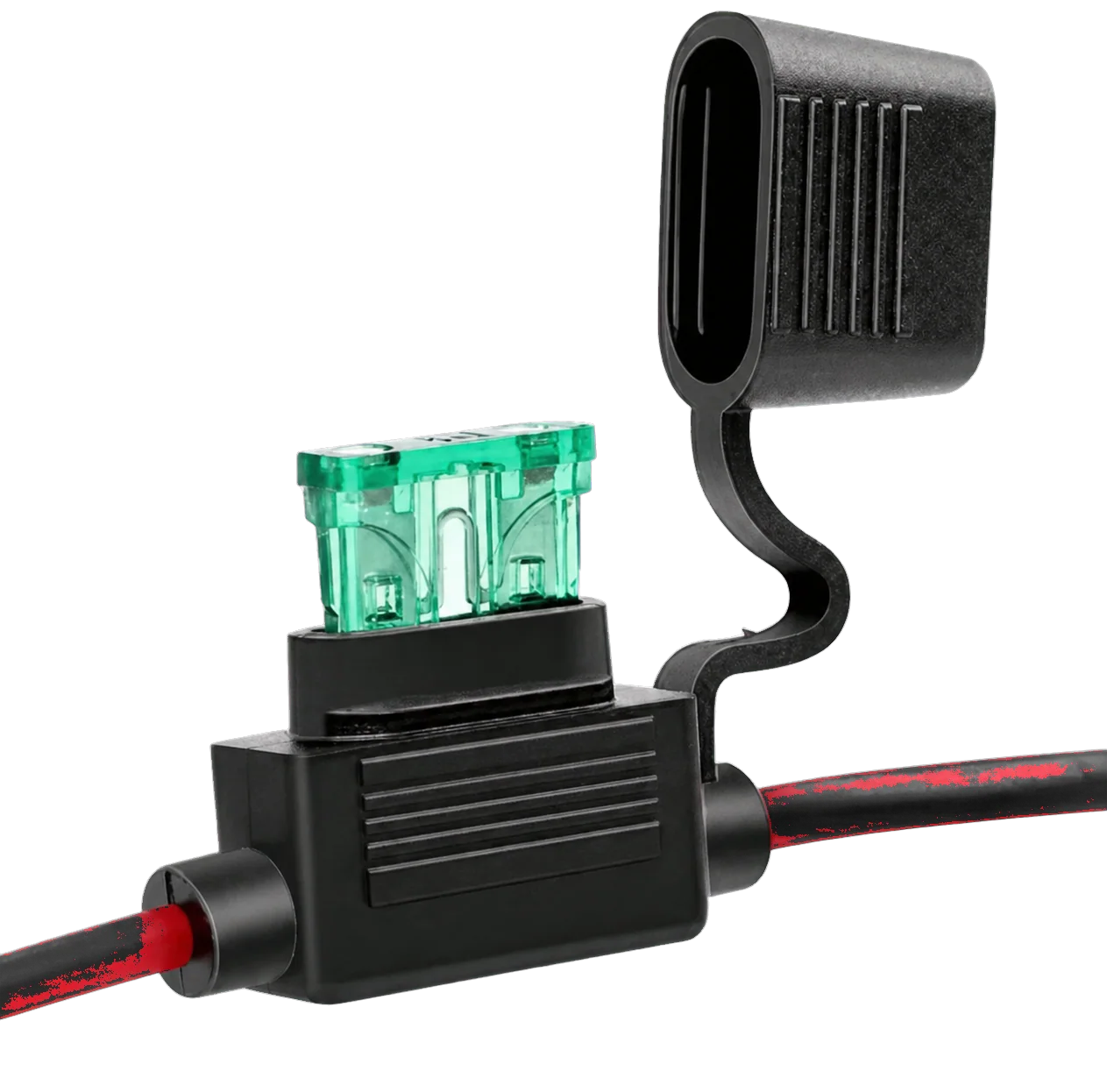

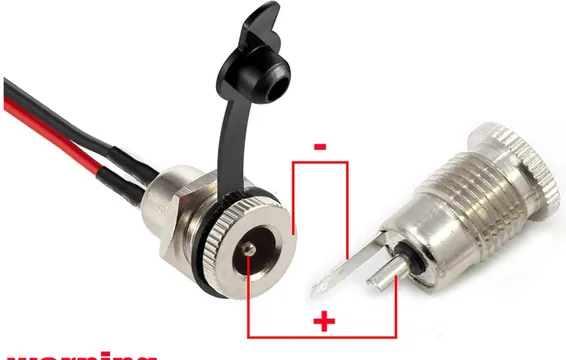

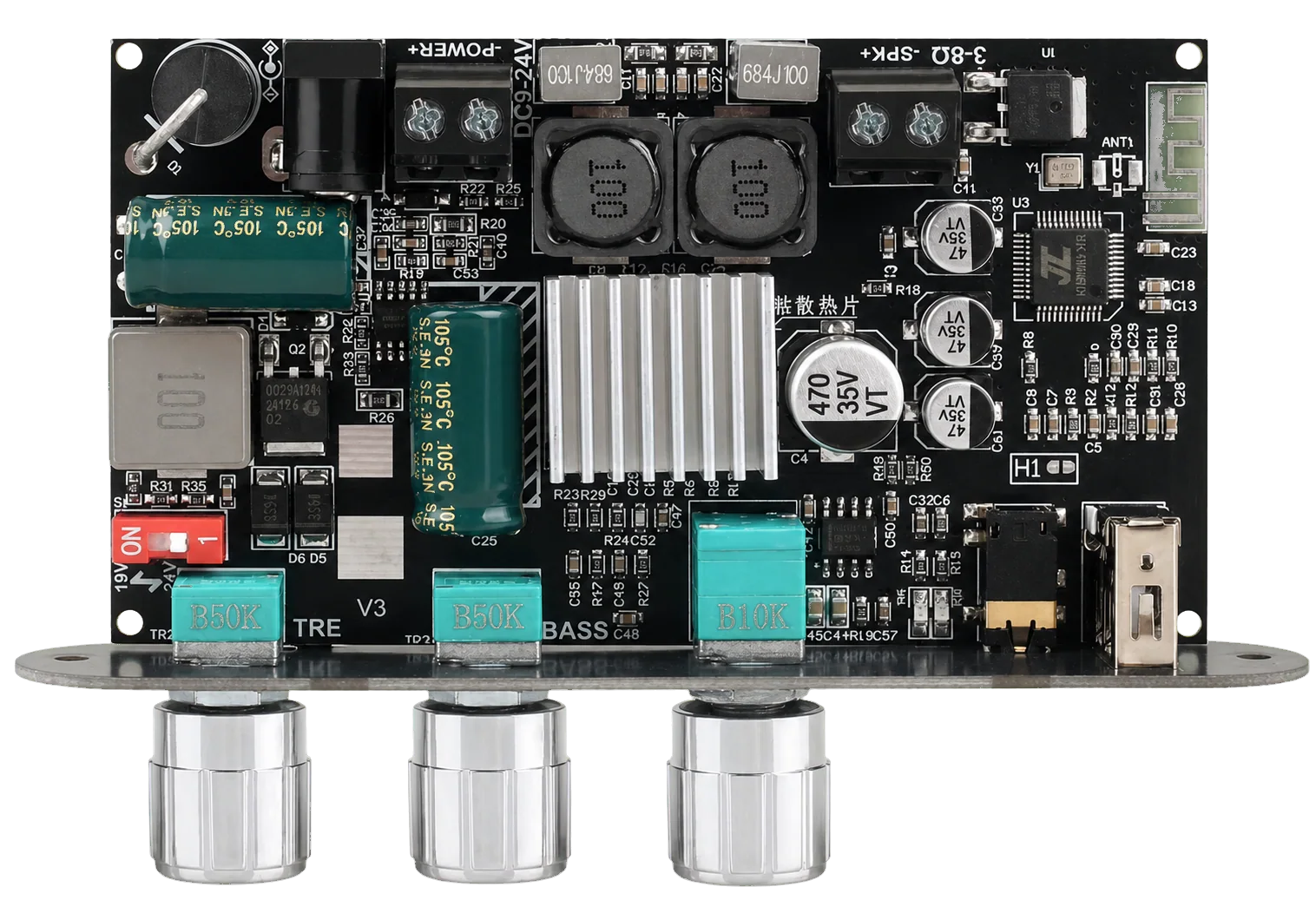

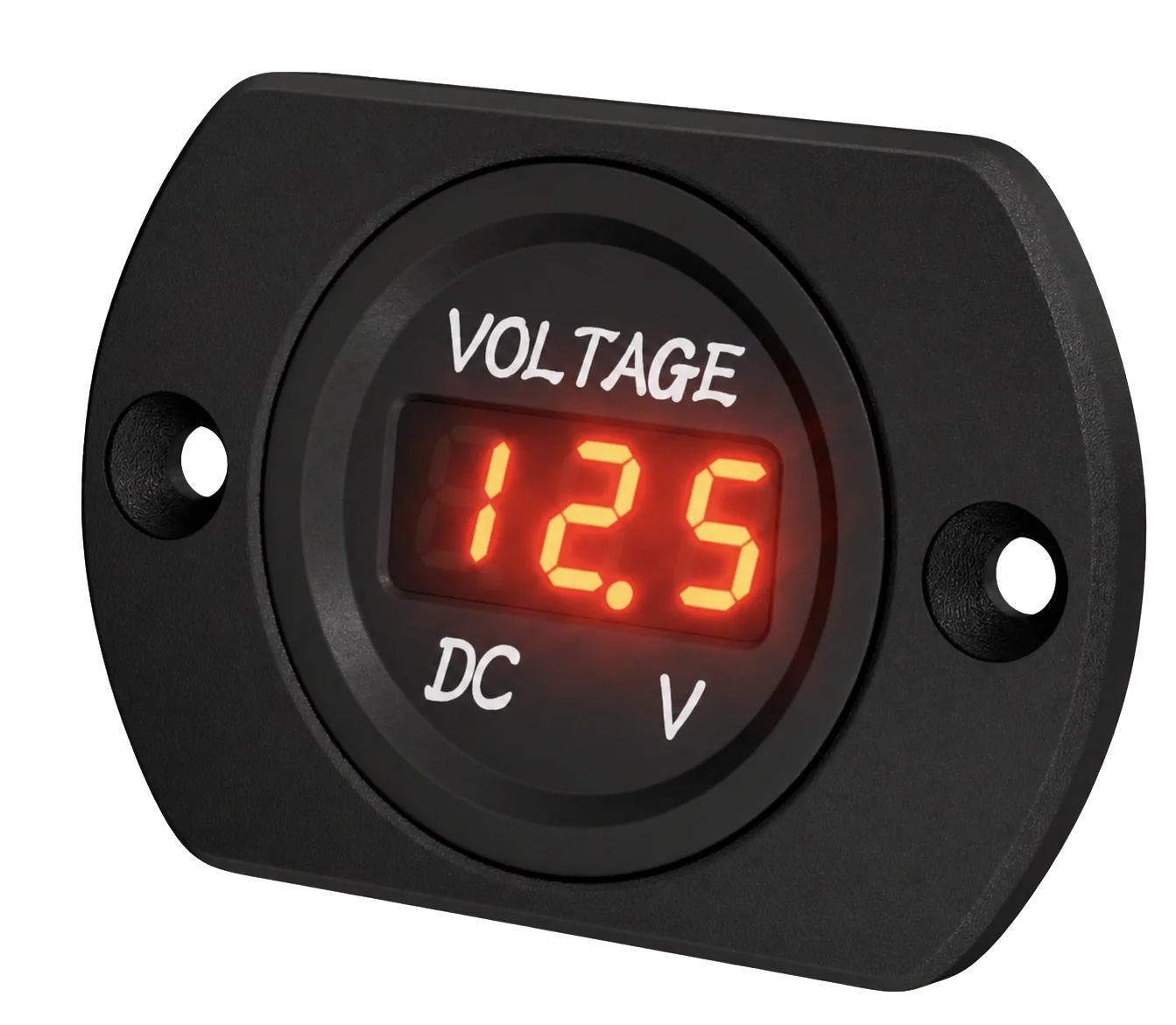

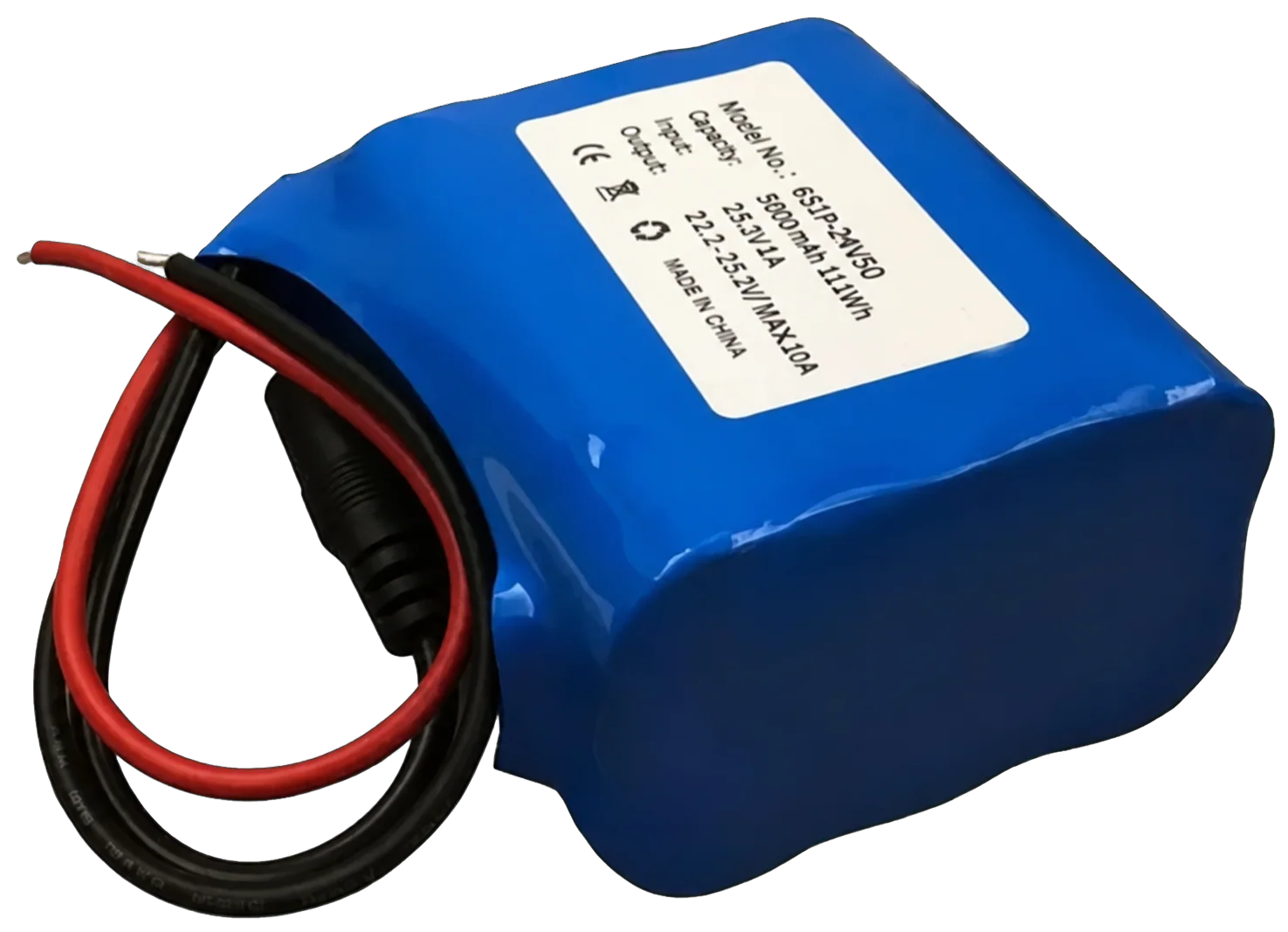

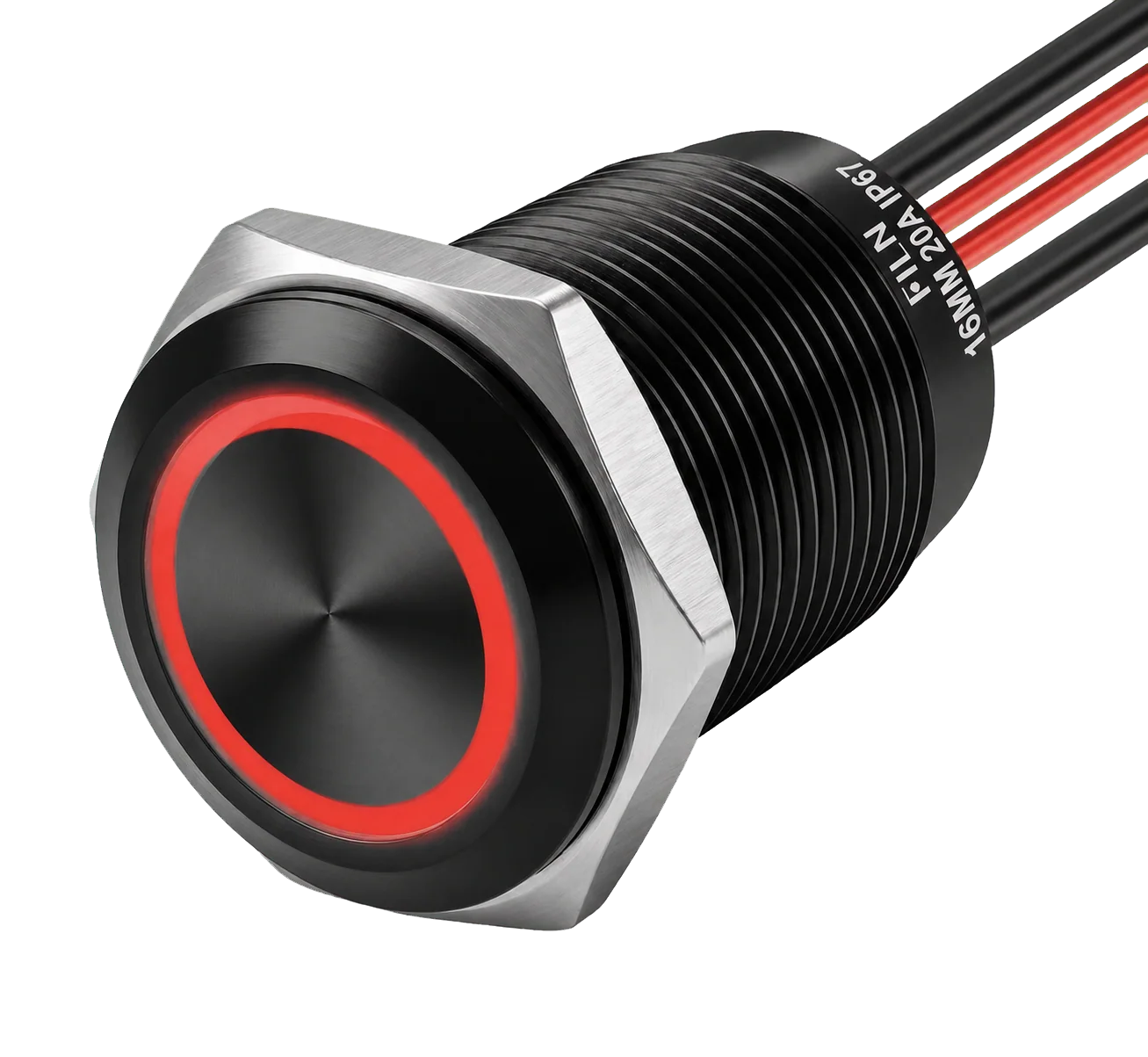

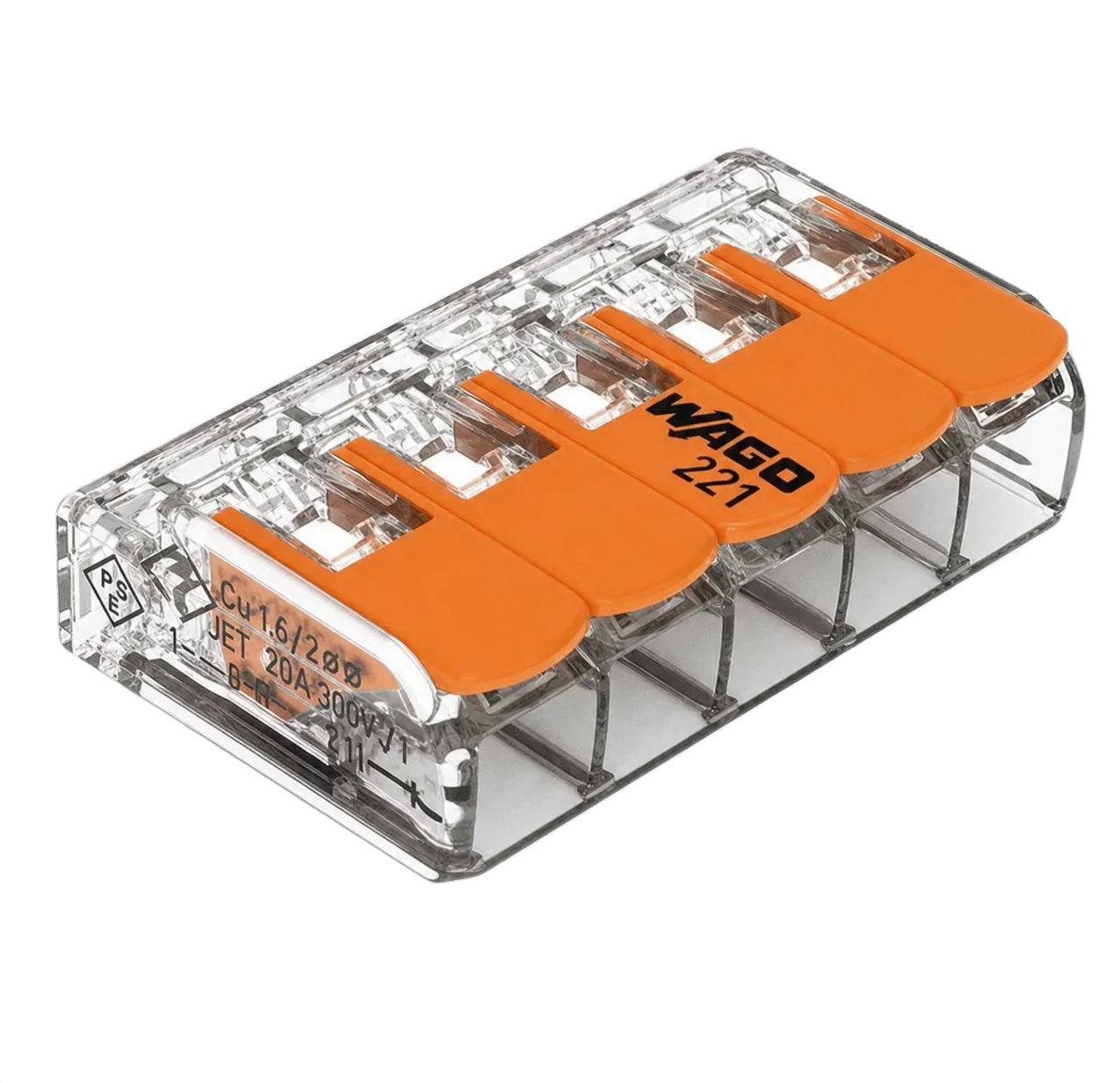

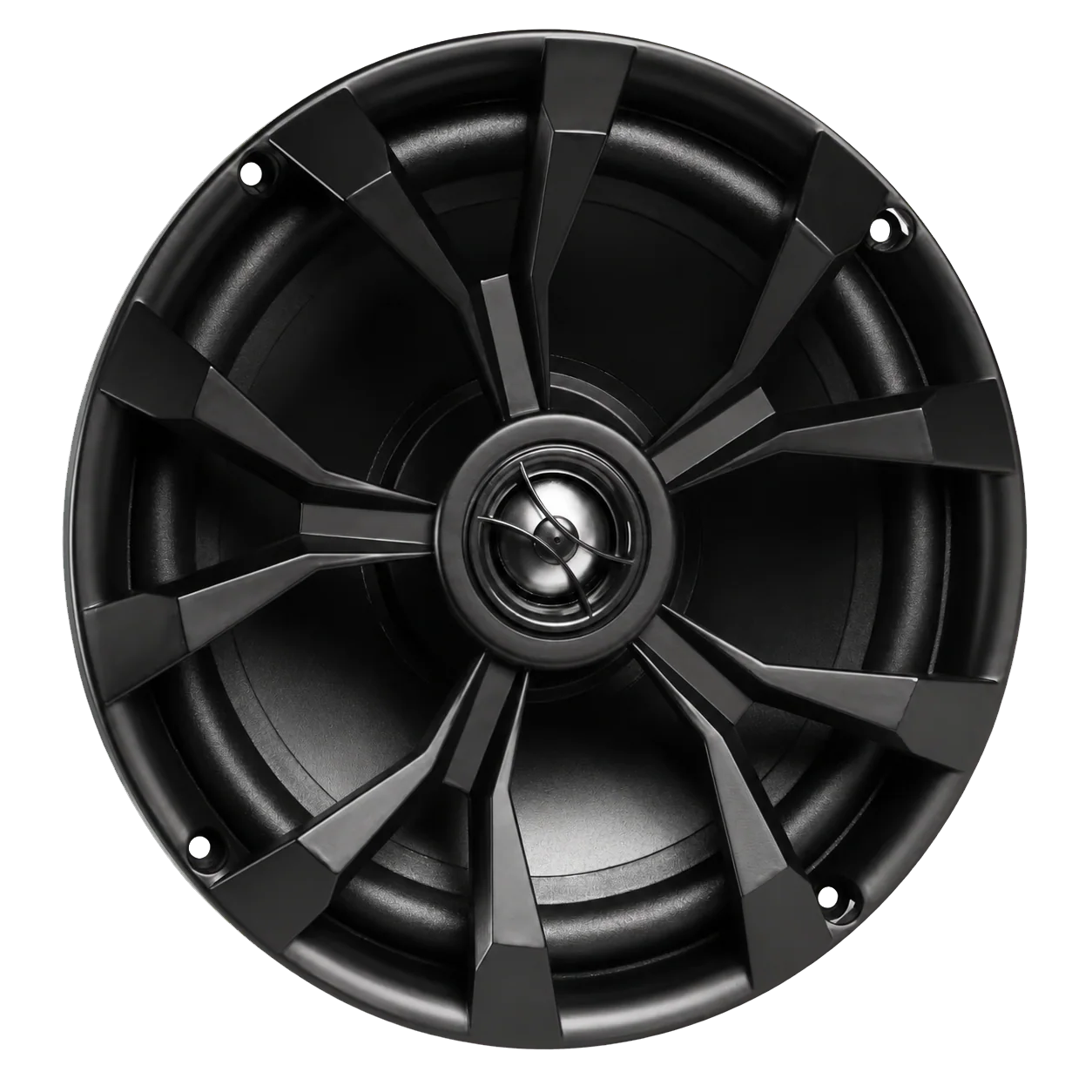

Jump to parts

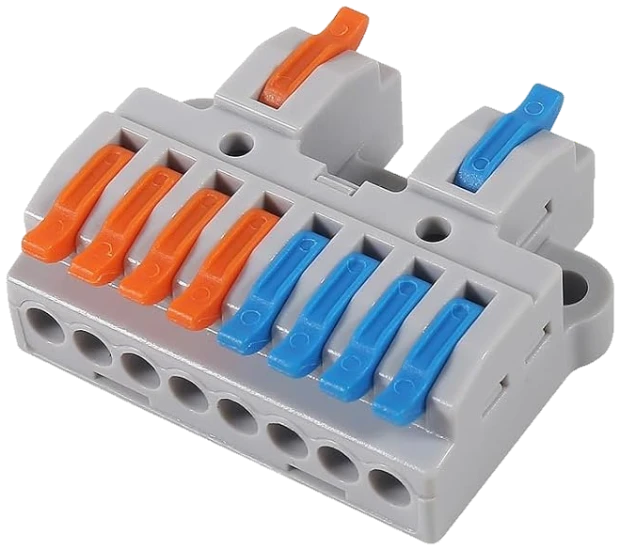

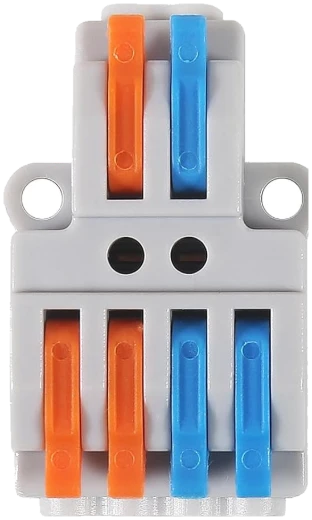

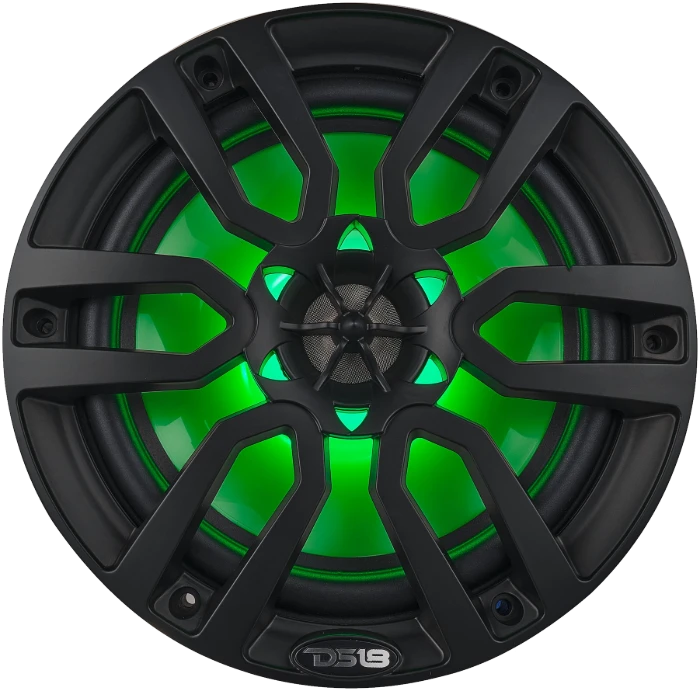

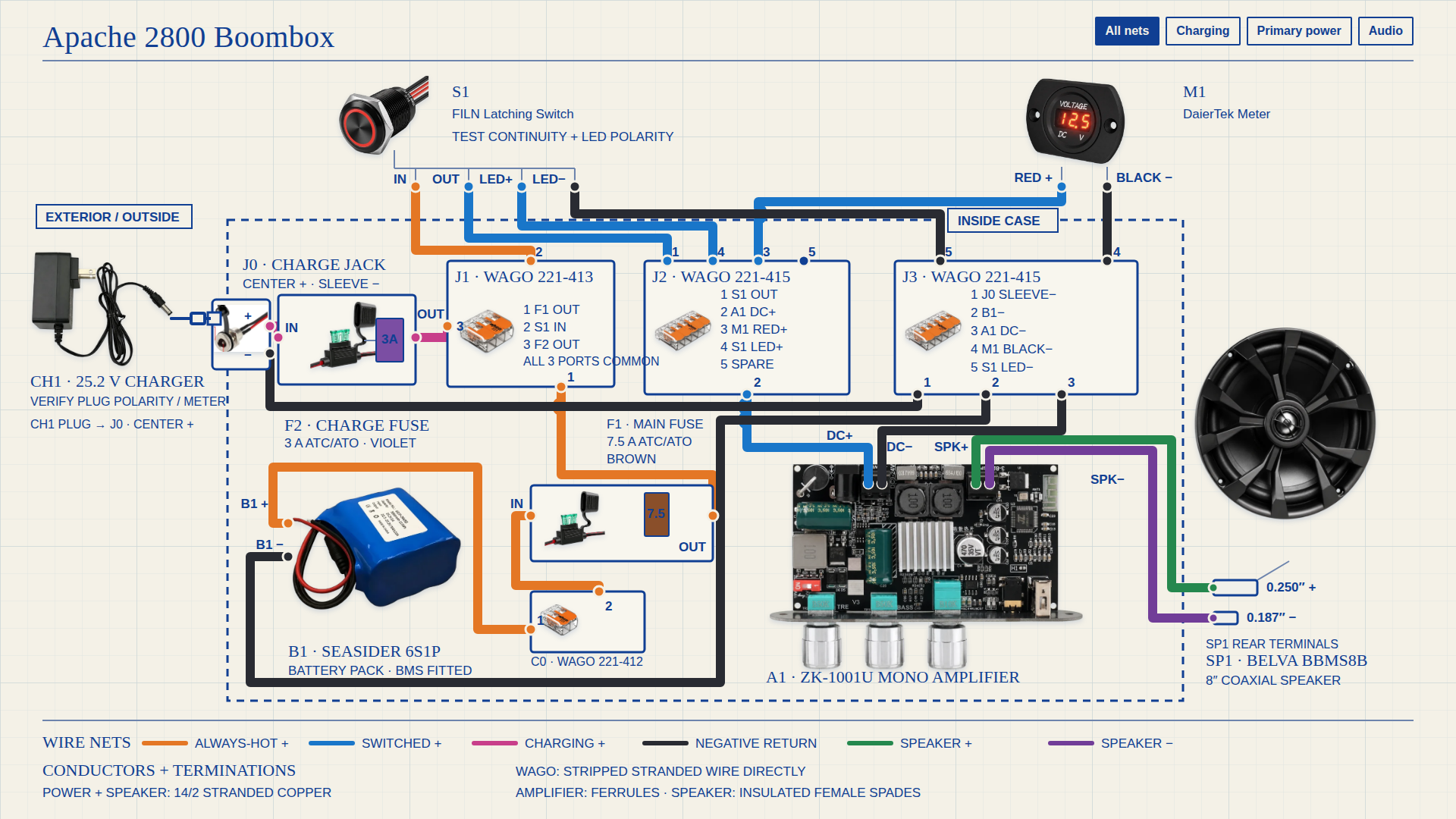

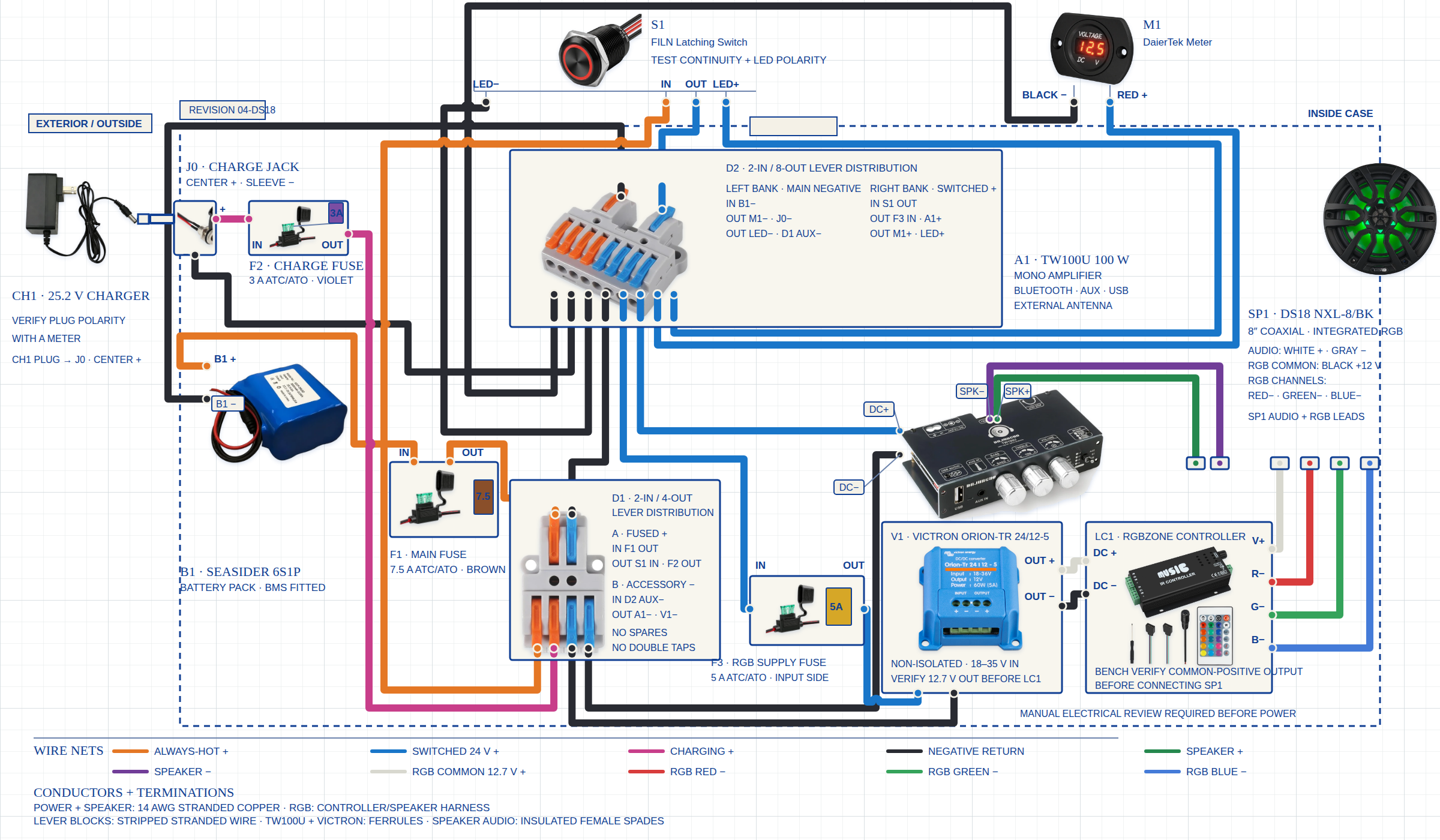

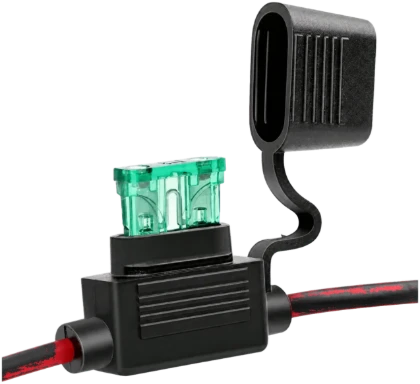

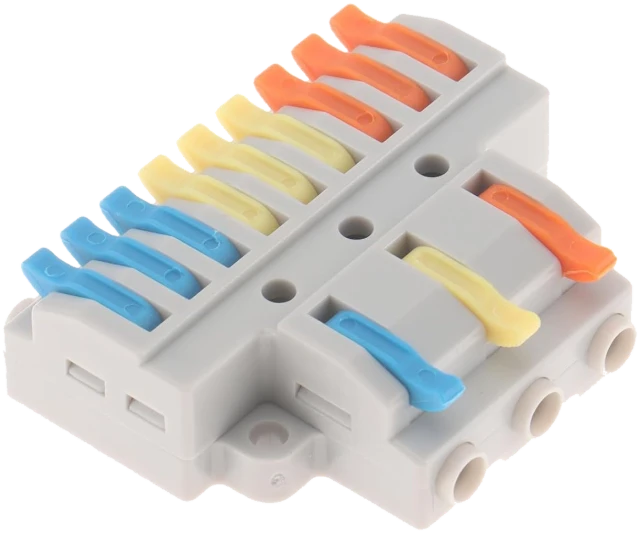

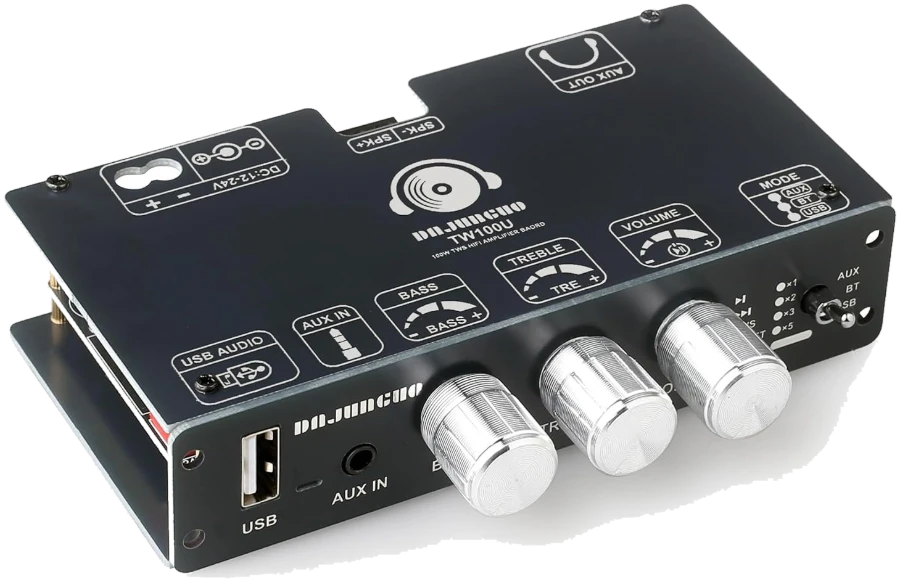

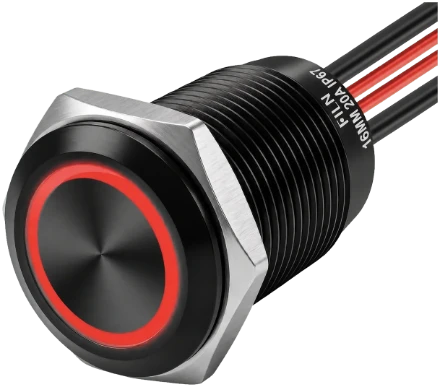

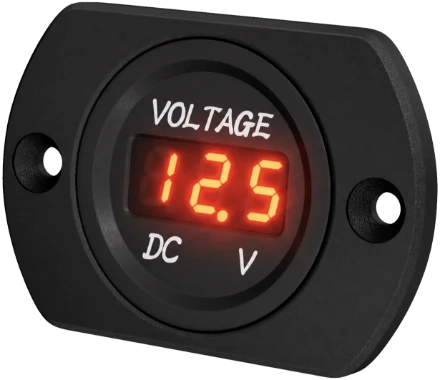

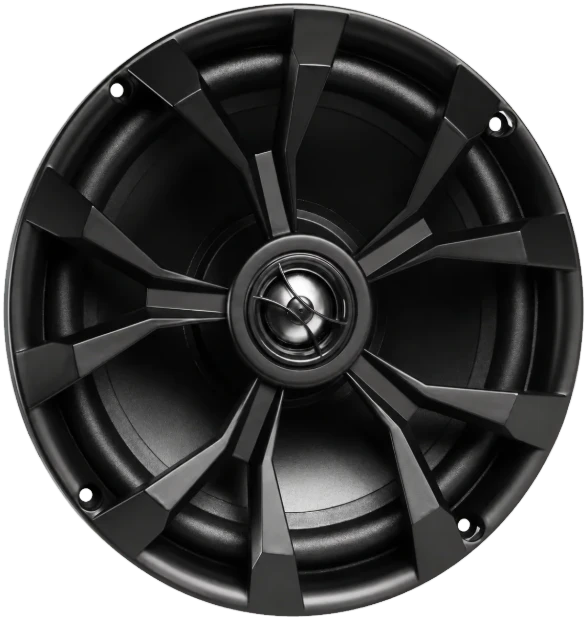

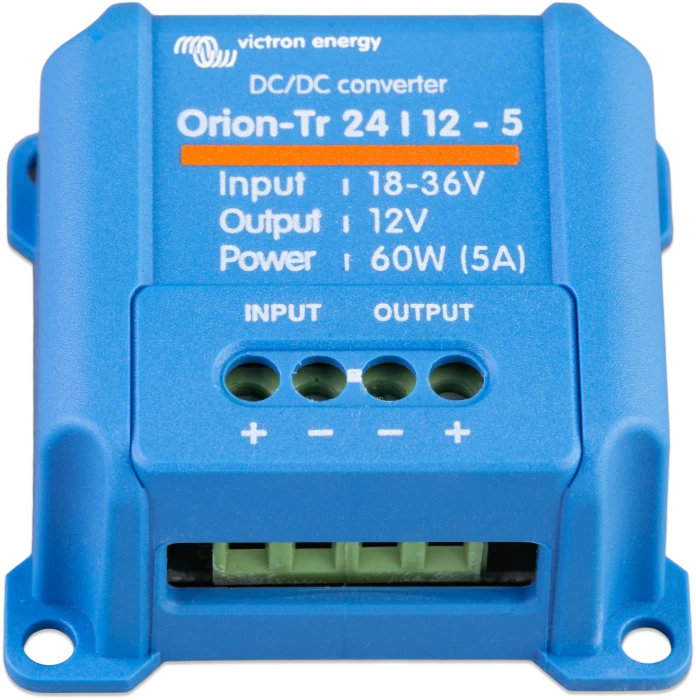

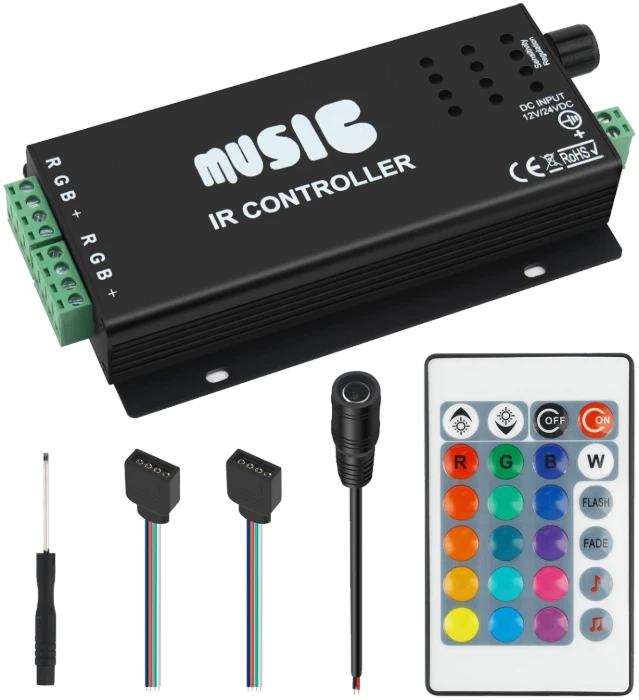

Apache 2800 boombox wiring blueprint showing charging, power, and audio connections — Interactive Apache 2800 boombox wiring blueprint. Use the filters and view controls, or open the parts manifest to locate components.

Loading interactive diagram…
